| Quantity: | |
|---|---|

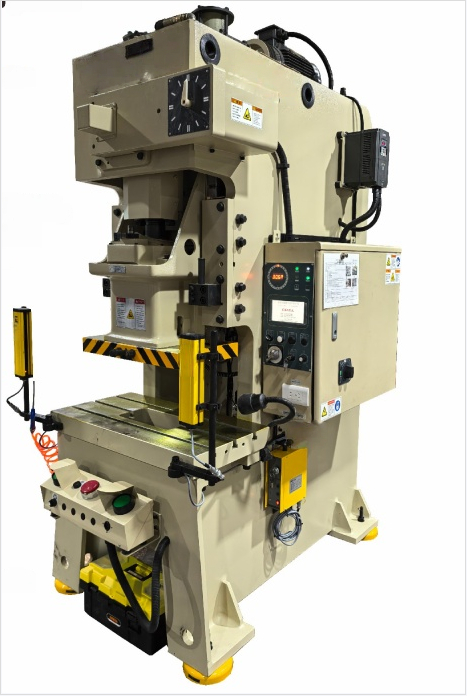

GF-45
GangFeng
Product features
1.It is applicable to various adhsive stickers,electrical surface rubber plates,ceramics,electronic cigarette cotton and other industries.
2.It is suitable for feeding different material of different thickness,can set the length arbiratilly,is efficent and can maintain pressure,and can set the speed freely.
3.Electronic monitoring system,easy to operate,mute and intuitive.
Configuration
Standard accessory configuration | |
Human-Machine Interface | 1group |
Servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam constriction | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
Project Model | 45 | |||
Nominal force | 45T | |||
Trip | 50 | 80 | ||
Number of trips | 60-150 | 60-100 | ||
Maximum mold height mm | 265 | 250 | ||
Size of upper table mm | 400*300*60 | |||
Installation hole distance of upper table mould | 220 | |||
Dimension of lower table mm | 850x440x80 (L x W x D) | |||
Handld hole mm | 38.1 | |||
Main motor power | 7.5kw | |||
Slide adjustment | 60 | |||
Mold installation mode | Mould Hanging | |||
Working air pressure kg / cm² | 5 | |||
Operation method | Two-handed Operation | |||
Press color | Standard Off-white | |||
Fuselage mm (L × W × H) | 1600 x 950 x 2400 | |||
Press weight | 3600kg | |||
Specification parameters

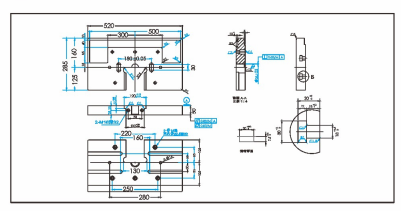

Upper workbench
Lower workbench
Dimensions
