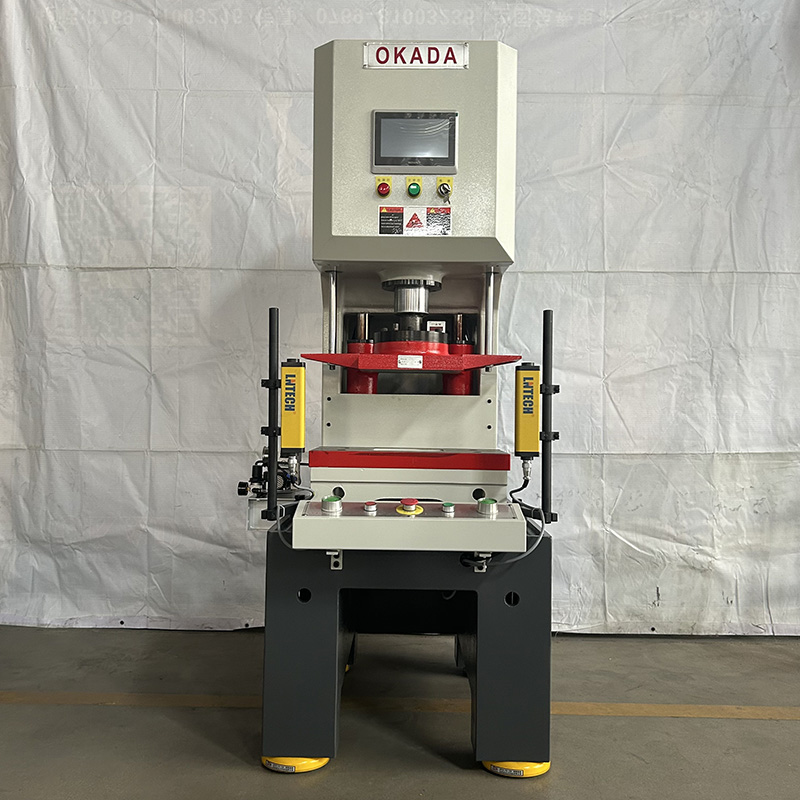

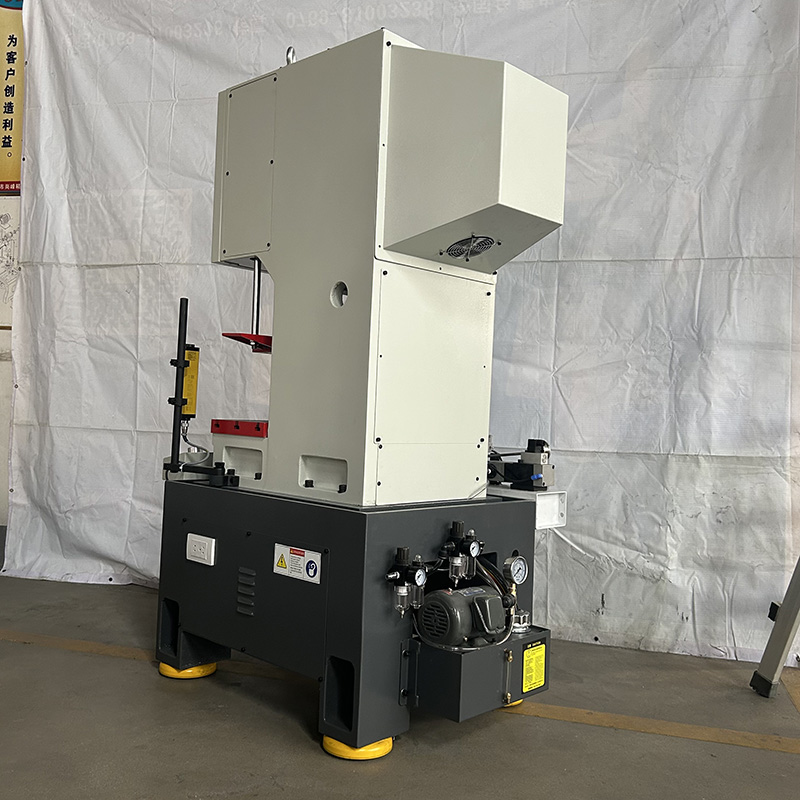

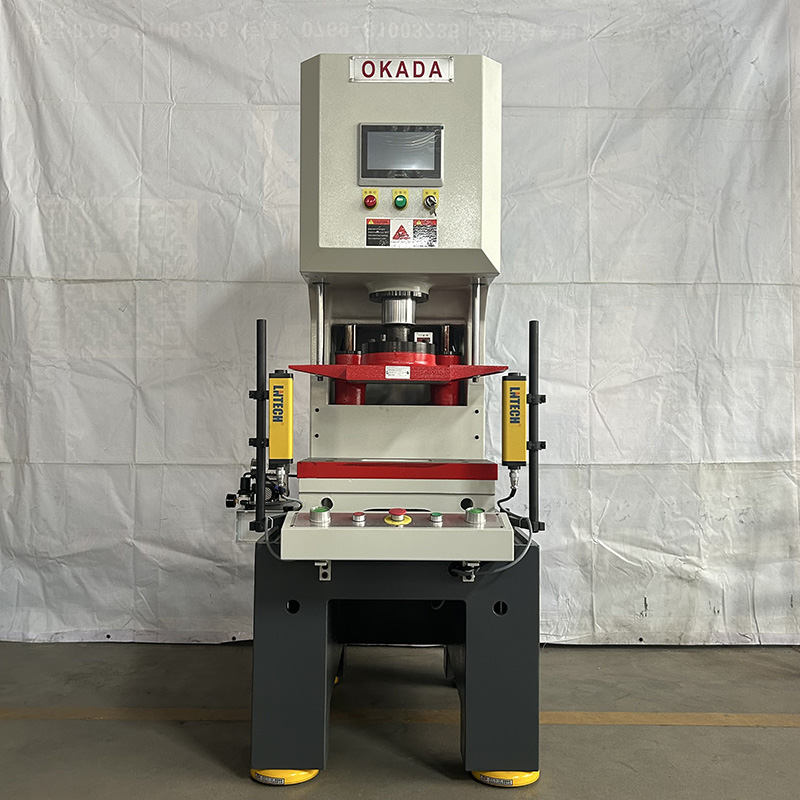

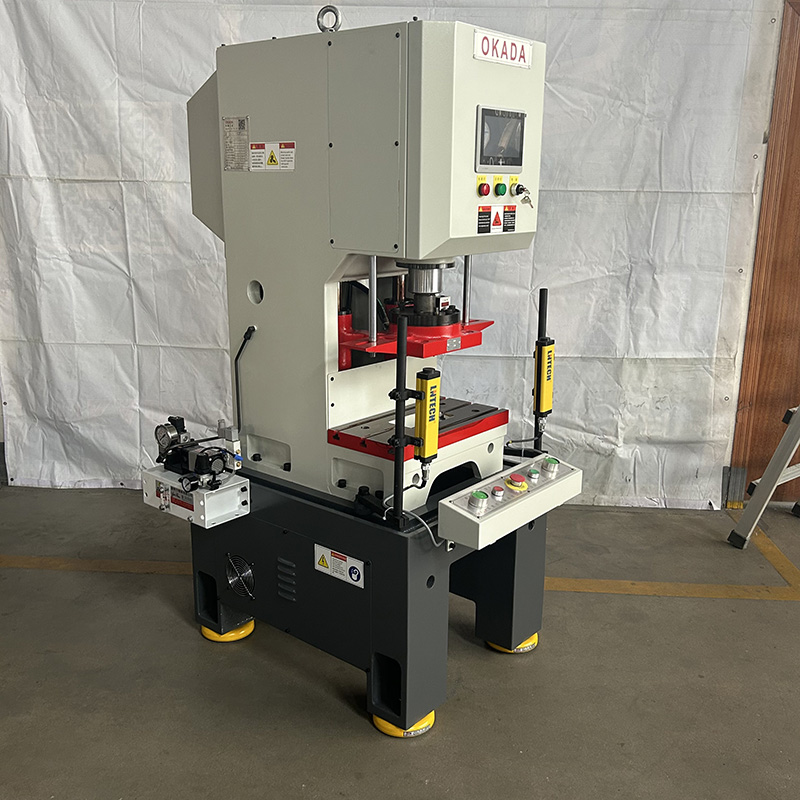

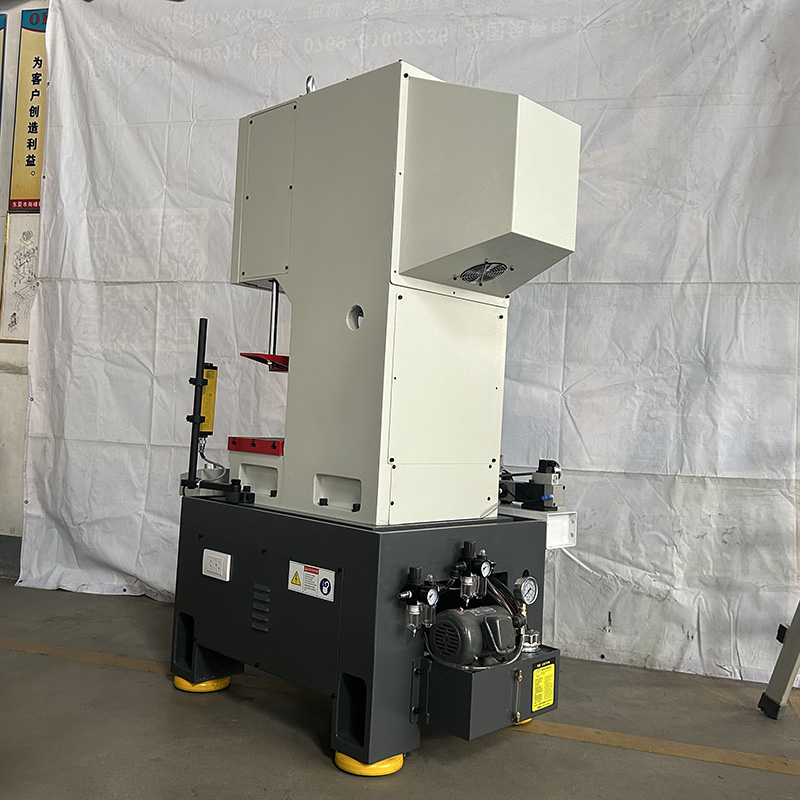

SF-10T
GangFeng
Product features
1.Advanced imported manufacturing technology
2.Humanized appearance design
3.Simple operation man machine interface digital system
4.Perfect combination of efficient production capacity and automatic production line
Configuration
Standard accessory configuration | |
Human-Machine Interface | 1group |
servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam structure | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
| Model | SF-10T |
| Normal force | 10T |
| Trip | 70 |
| 5 times the number of trips | 60-300 |
| 7 times the number of trips | 60-200 |
| 10 times the number of trips | 60-100 |
| Maximun mold ehight mm | 165 - 195 |
| Size of upper table mm | 260*200 |
| Installation hole distance of upper table mould | 215*230 |
| Dimension of lower table mm | 490*250*40 (L*W*H) |
| Blankiing hole size mm | 180*100 |
| Guide Pillar spacing mm | 230 |
| main motor power | 5.5 |
| slide adjustment mm | 30 |
| Mold installation mode | Lifting mold method |
| Working air pressure kg/cm 2 | 5 |
| Operation method | Two hand operation |
| Press color | standard off white |
| Fuselage mm (L * W * H) mm | 1155*880*1660 |
| Weight kg | 1200 |
Specification parameters
Upper workbench
Lower workbench
Dimensions
