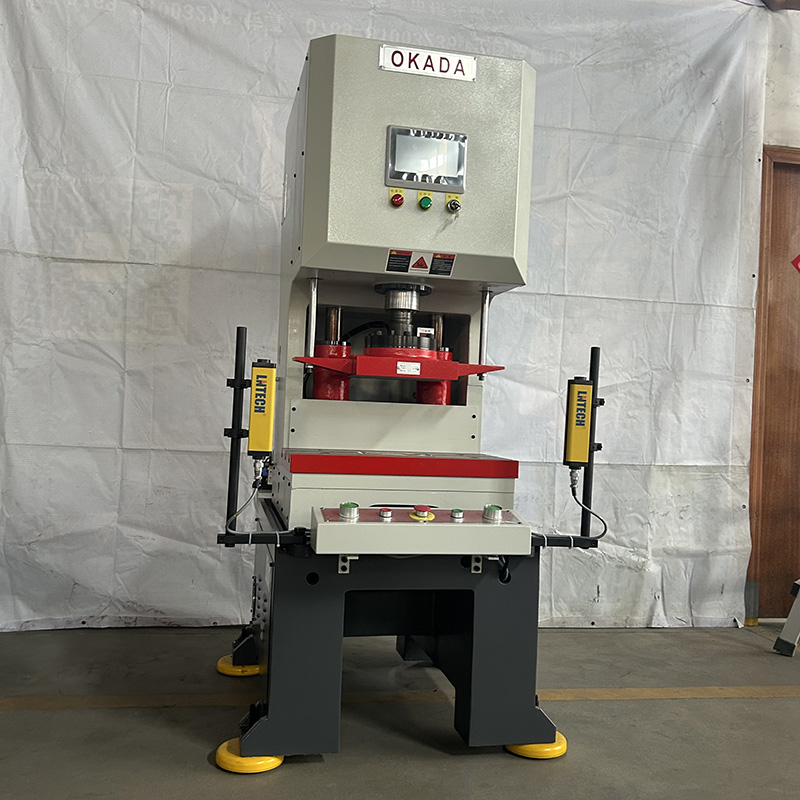

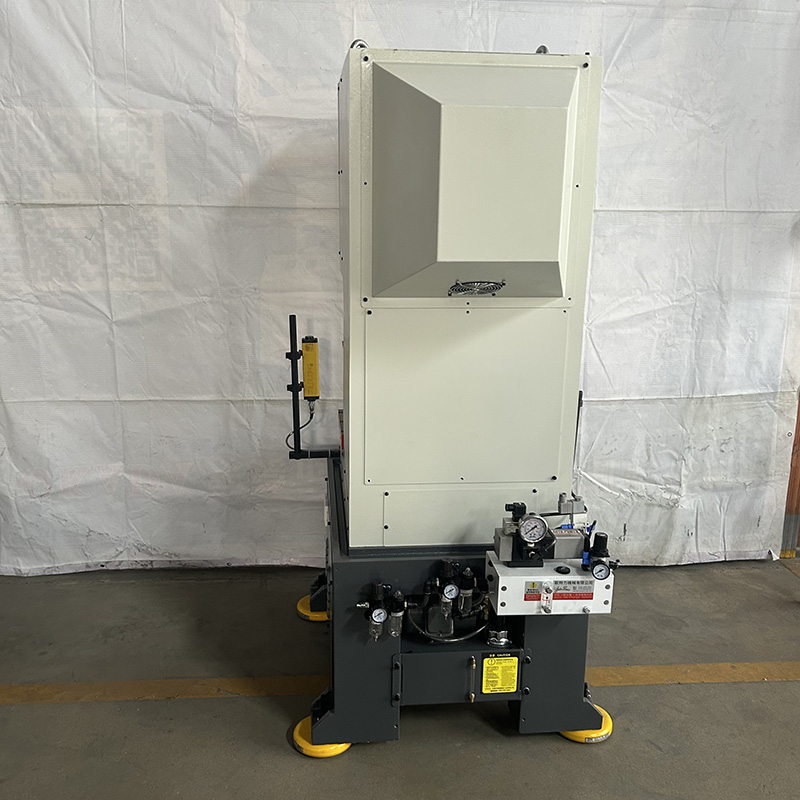

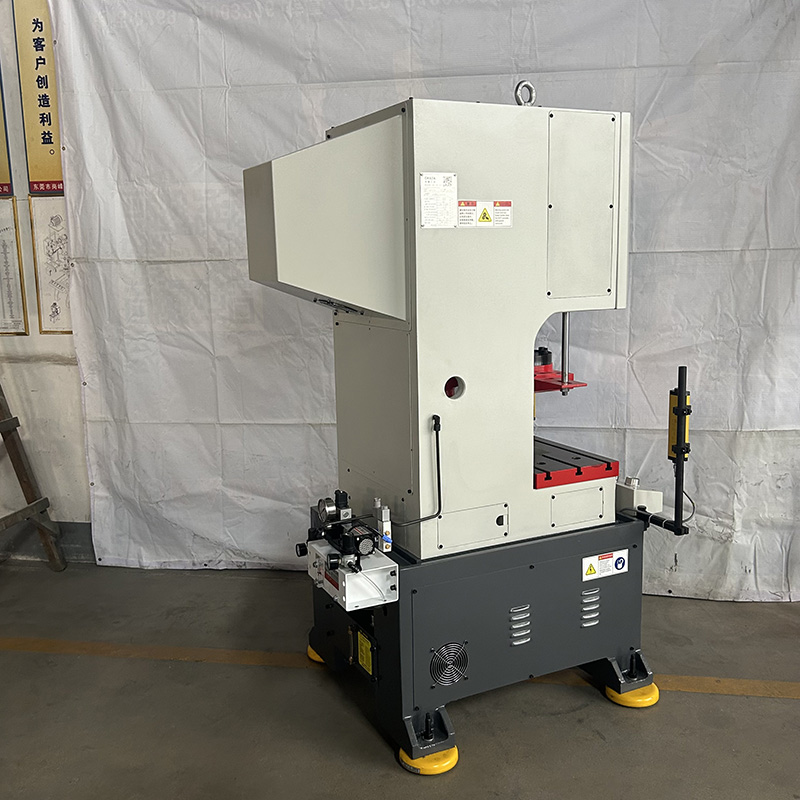

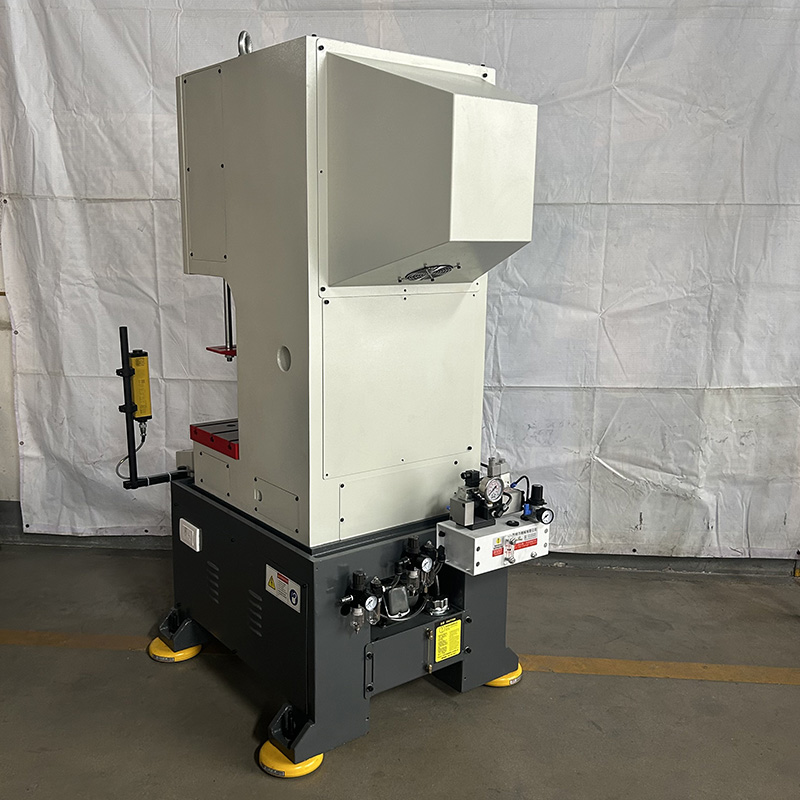

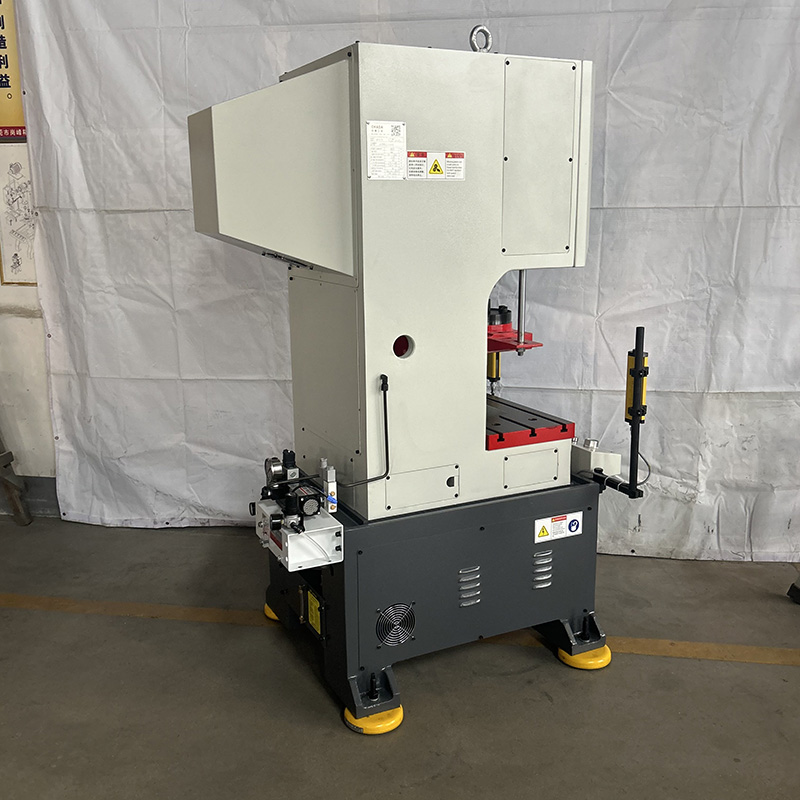

SF-15T Trip 80 Series Precision Punch Press Machine

Product features

1.Servo control system,stable product characteristics,high efficiency,pressure-holding and free travel setting.

2.momorable slider running route,touch screen,easy to operate,concise and intuitive.

3.Low noise,adjustable speed and balanced stamping force atanyangle.

4.All electric drive mode,motor working when running,motor stopping when stopping,lower energy consumption,

modular structure,flexible design,forced circulation oil supply lubricaion,maintenance and maintenance are more convenient.

Configuration

Standard accessorry configuration
Human-Machine Interface	1group
servo motor	1group
Programmable logic controller(PLC)	1group
Electronic cam structure	1group
Inverter control	1group
Manual mold height adjustment	1group
Display mode height indicator	1 group

Standard accessory configuration
Circulating lubrication oil supply system	1group
Air source receptacle	1group
Maintenance tools and toolboxes	1group
Operating instructions and precision Inspection grade sheet	1group
Photoelectric protection configuration	1group
Oil pressure locking system	1group

Specification parameters

Model	SF-15T
Norminal force	15T
Trip	80
5 times the number of trips	60-300
7 times the number of trips	60-200
10 times the number of trips	60-100
Maximum mold height mm	170 - 200
Size of upper table mm	270 * 205
Installation hole distance of upper table mould	230
Dimension of lower table mm	59030045 (LWH)
Blanking hole size mm	200*100
Guide Pillar spacing mm	260
Main motor power	5.5
Slide adjustment mm	30
Mold installation mode	Lifting mold Method
Working air pressure kg/ cm 2	5
Operation method	two-hand operation
Press color	standard off white
weight kg	1550
