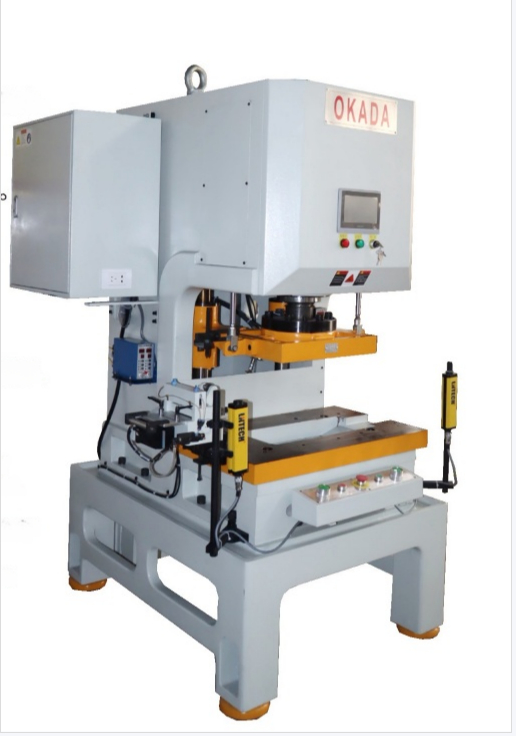

SF-35T Series Precision Punch Press Machine

1.Advanced imported manufacturing technology

2.Humanized appearance design

3.Simple operation man machine interface digital system

4.Perfect combination of efficient production capacity and automatic production line

Standard accessory configuration
Human-Machine Interface	1group
servo motor	1group
Programmable logic controller(PLC)	1group
Electronic cam structure	1group
Inverter control	1group
Manual mold height adjustment	1group

Standard accessory configuration
Circulating lubrication oil supply system	1group
Air source receptacle	1group
Maintenance tools and toolboxes	1group
Operating instructions and precision Inspection grade sheet	1group
Photoelectric protection configuration	1group
Oil pressure locking system	1group

Specification parameters

Project Model	SF-35T
Nominal force	35T
Trip	40	50	60	70	80
5 times Number of trips	60-300	60 ~ 300	60 ~ 300	60 ~ 300	60-300
7 times Number of trips	60-200	60-200	60- 200	60- 200	60 - 200
10 times Number of trips	60-100	60-100	60-100	60-100	60-100
Maximum mold height mm	215-245	210 ~ 240	205 ~ 235	200 ~ 230	195-225

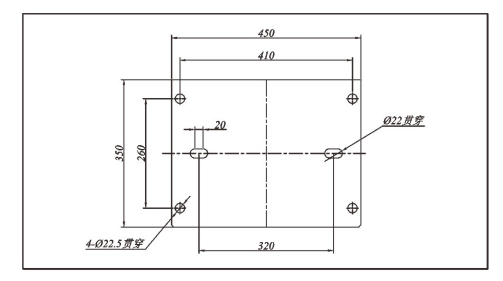

Size of upper table mm	450*350
Installation hole distance of upper table mould	320

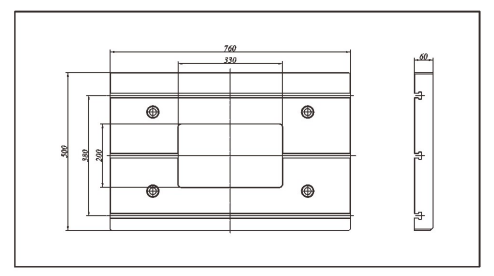

Dimension of lower table mm	760x500*60 (L x W x D)
Blanking hole size mm	330*200
Guid pillar spacing mm	340
Main motor power	15
Slide adjustment	30mm
Mold installation mode	Lifting Hanging Method
Working air pressure kg / cm²	5
Operation method	Two-hand Operation
Press color	Standard Off-white

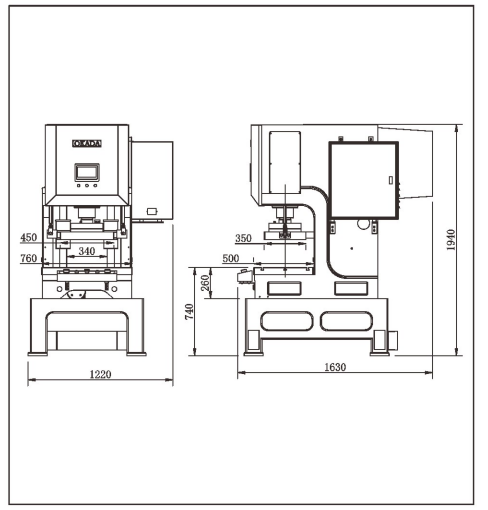

Fuselage mm (L x W x H)	1630x1220x1940
Weight kg	2900
