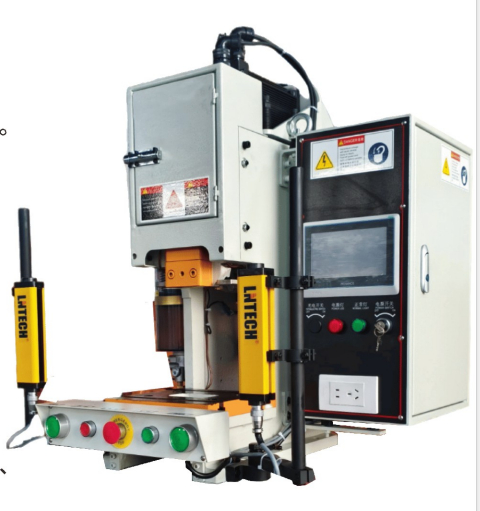

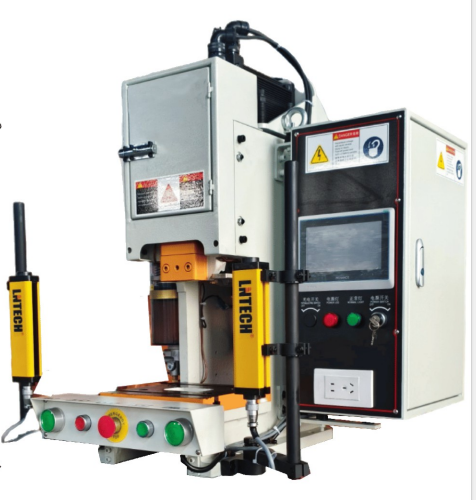

SF-3T
GangFeng
1.Advanced imported manufacturing technology
2.Humanized appearance design
3.Simple operation man machine interface digital system
4.Perfect combination of efficient production capacity and automatic production line
Standard accessory configuration | |
Human-Machine Interface | 1group |
servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam structure | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
Project Model | SF-3T | |||
Nominal force | 3T | |||
Trip | 30 | 40 | 50 | |
Number of trips | 60 ~ 200 | 60 ~ 200 | 60 ~ 200 | |
Maximum mold height mm | 180 ~ 210 | 175 ~ 205 | 170 ~ 200 | |
Size of upper table mm | 90*60 | |||
Installation hole distance of upper table mould | ||||
Dimension of lower table mm | 250x235x30 (L x W x D) | |||
Blanking hole size mm | 100x60 | |||
Main motor power | 2.2 | |||
Slide adjustment | 30mm | |||
Mold installation mode | Mould Hanging Method | |||
Working air pressure kg / cm² | 5 | |||
Operation method | Two-hand Operation | |||
Press color | Standard Off-white | |||
Fuselage mm (L x W x H) | 640x580x830 | |||
Specification parameters

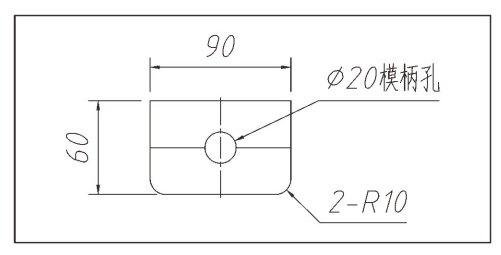

Upper workbench

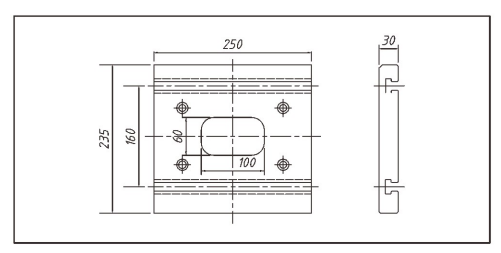

Lower workbench

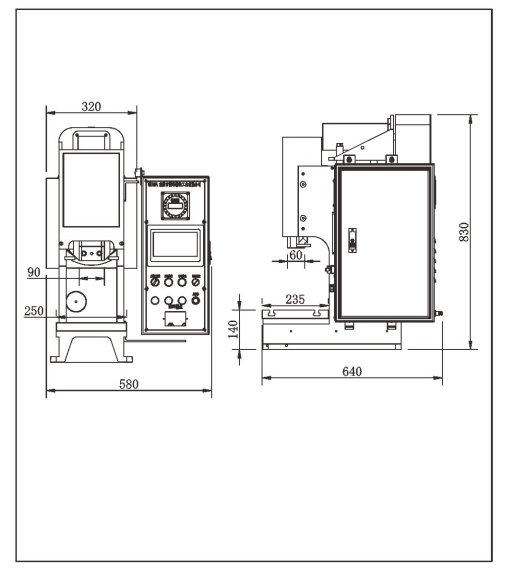

Dimensions
