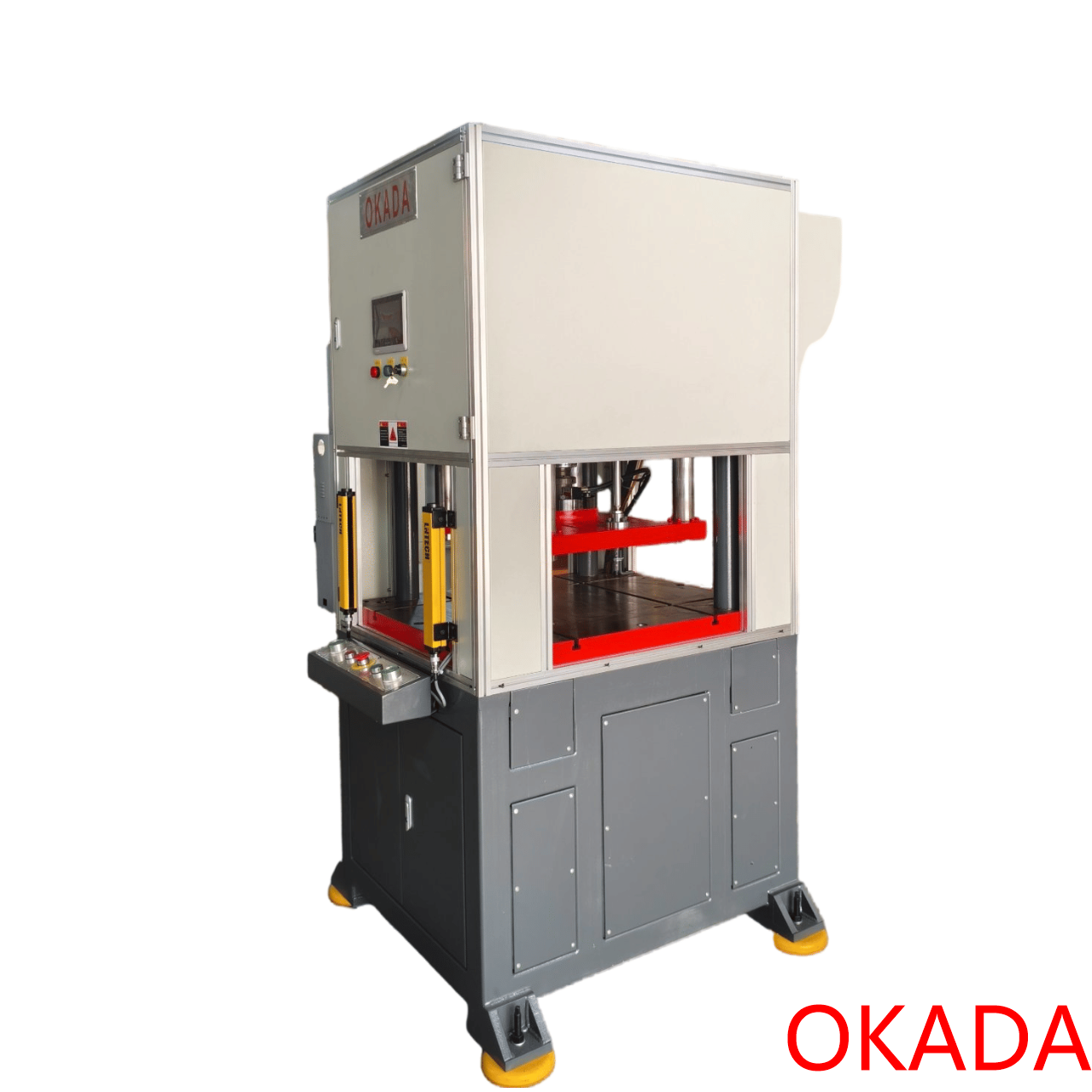

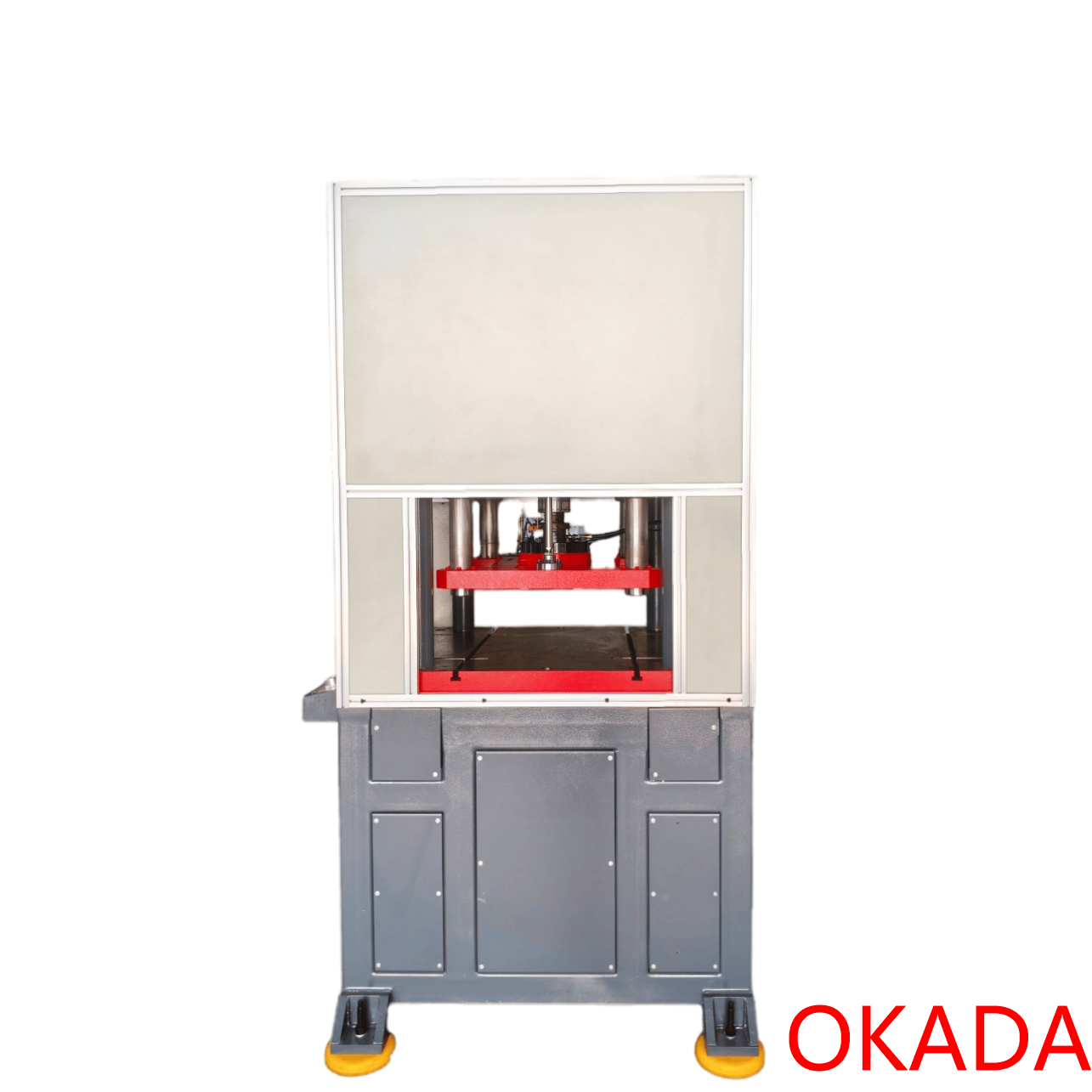

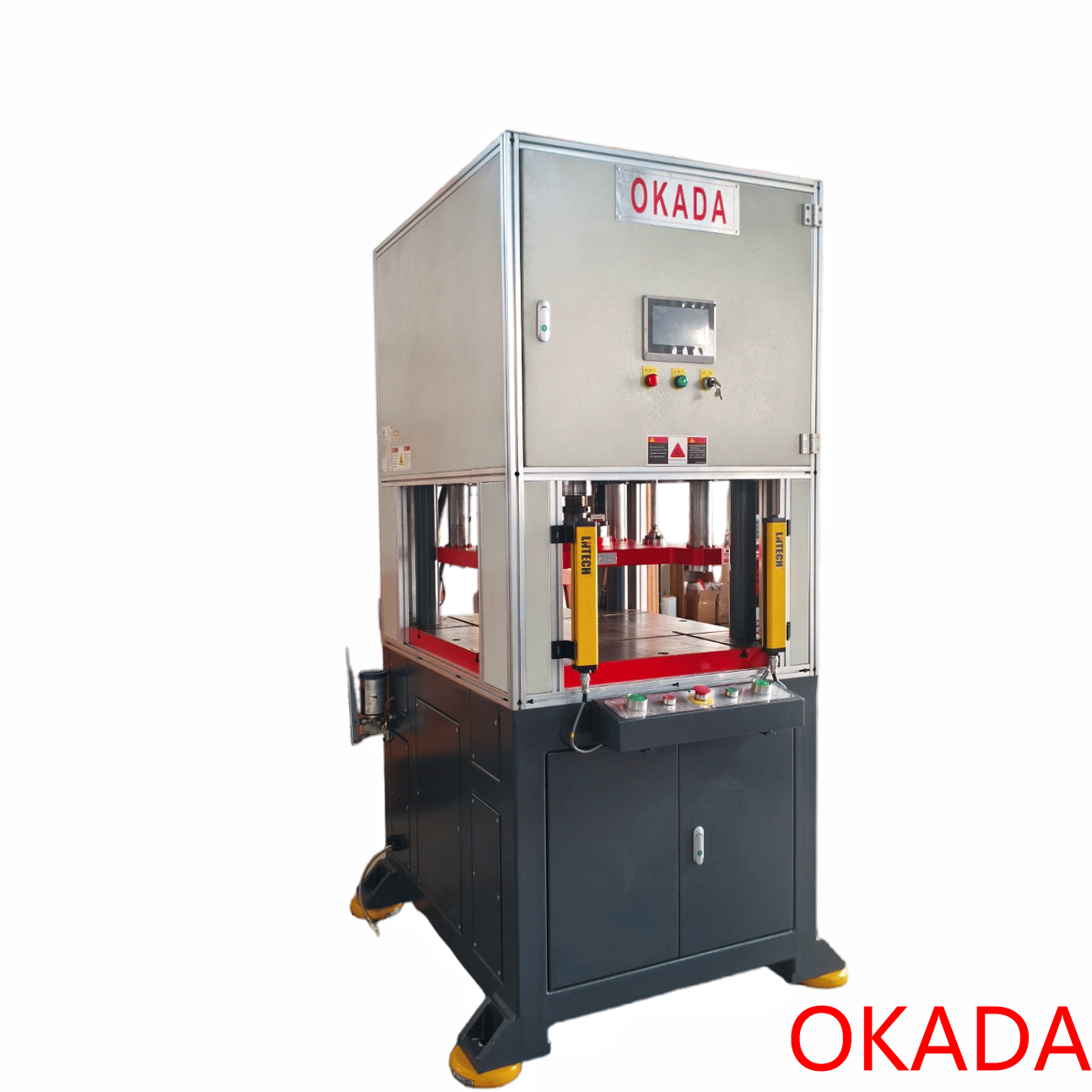

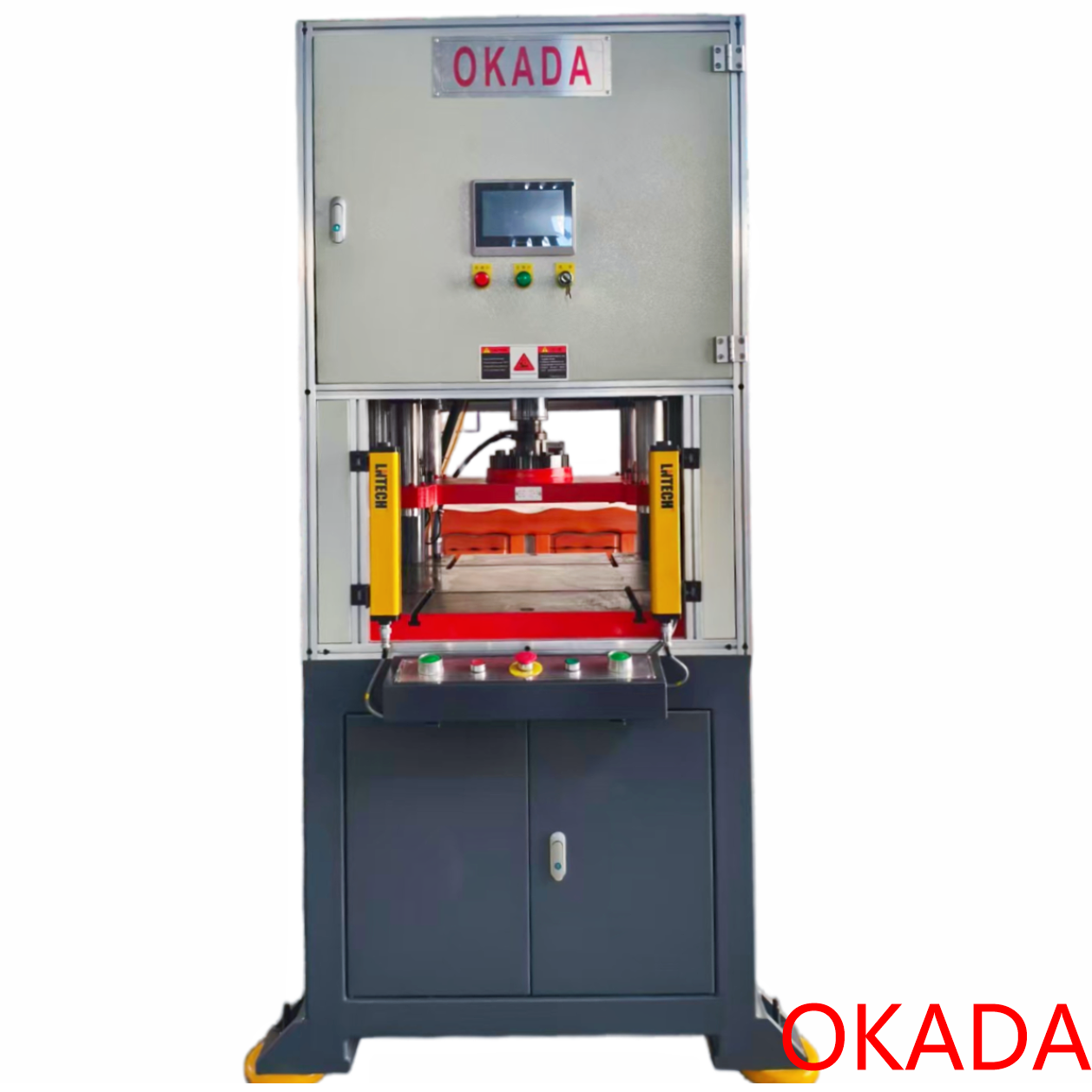

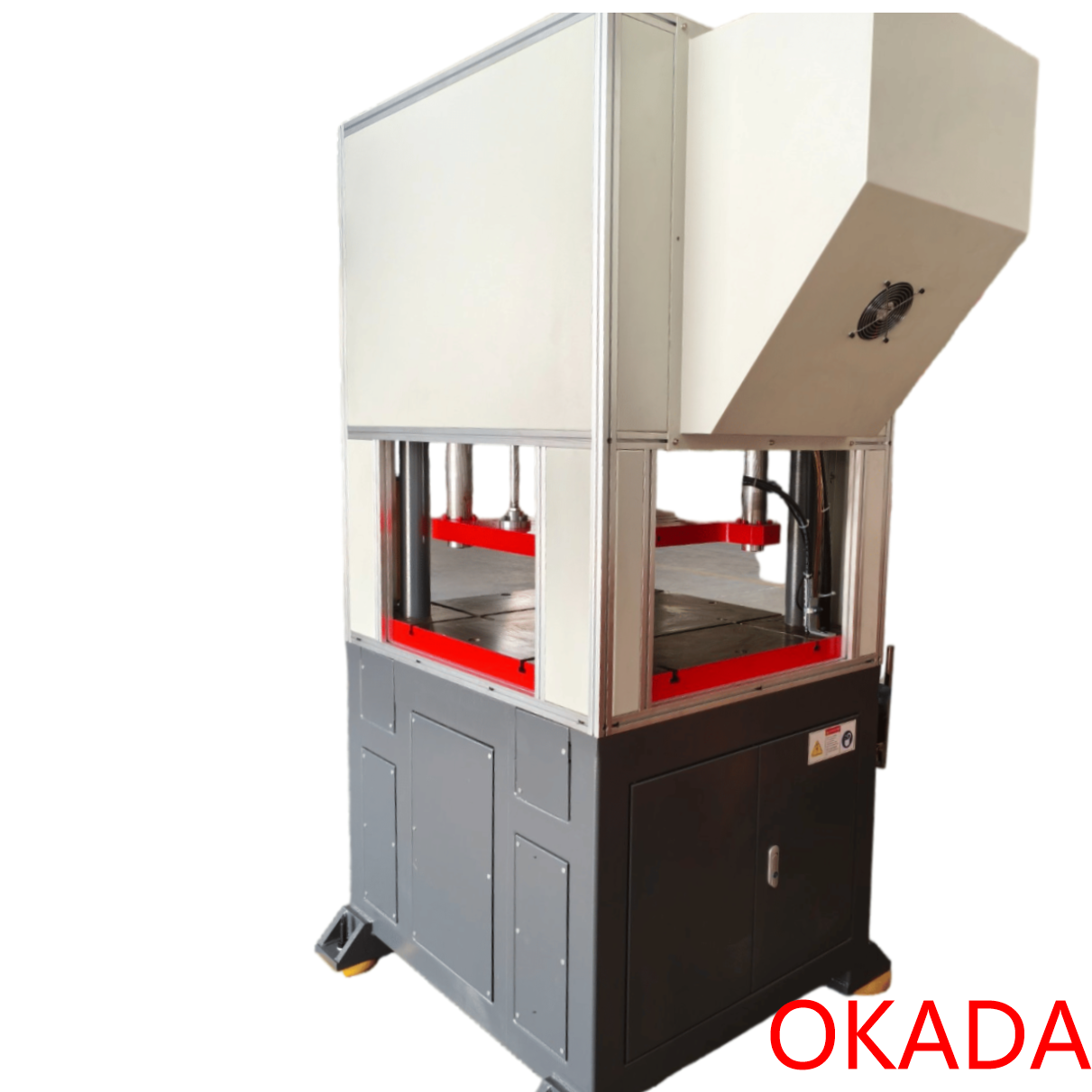

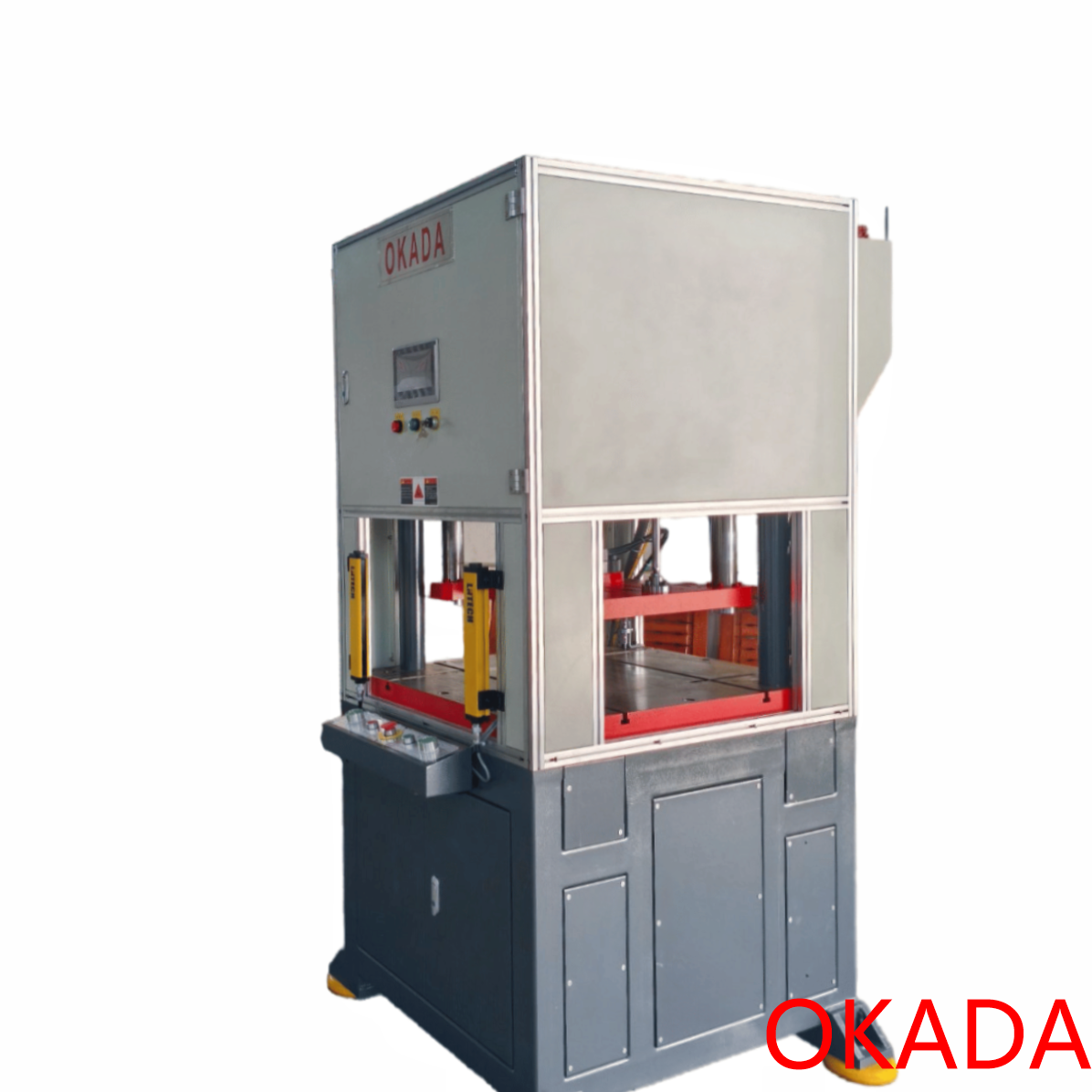

SFL-20T
GangFeng
1.Advanced imported manufacturing technology
2.Humanized appearance design
3.Simple operation man machine interface digital system
4.Perfect combination of efficient production capacity and automatic production line
Standard accessory configuration | |
Human-Machine Interface | 1group |
servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam structure | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
Project Model | SFL-20 | |||
Nominal force | 20T | |||
Trip | 30 | 50 | 80 | |
Number of trips | 60 ~ 300 | 60 ~ 300 | 60 ~ 300 | |
Maximum mold height mm | 235-265 | 225 ~ 255 | 210 ~ 240 | |
Size of upper table mm | 650*570 | |||
Installation hole distance of upper table mould | 250-400 | |||
Dimension of lower table mm | 934*800*80 (L x W x D) | |||
Blanking hole size mm | 200-100 | |||
Main motor power | 7.5 | |||
Slide adjustment | 30mm | |||
Mold installation mode | Lifting Hanging Method | |||
Working air pressure kg / cm² | 5 | |||
Operation method | Two-hand Operation | |||
Press color | Standard Off-white | |||
Fuselage mm (L x W x H) | 980x590x1520 | |||
Specification parameters

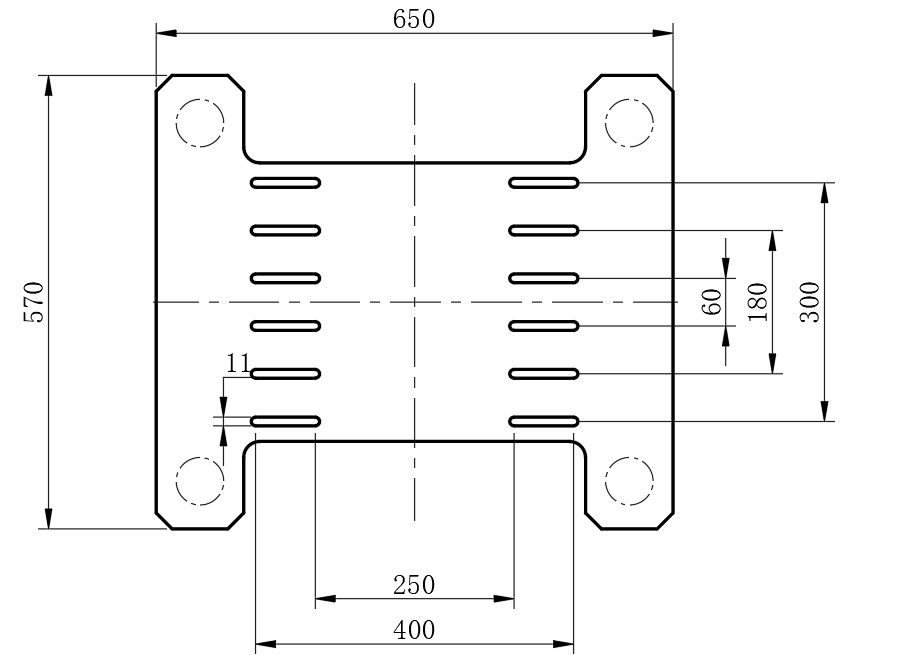

Upper workbench

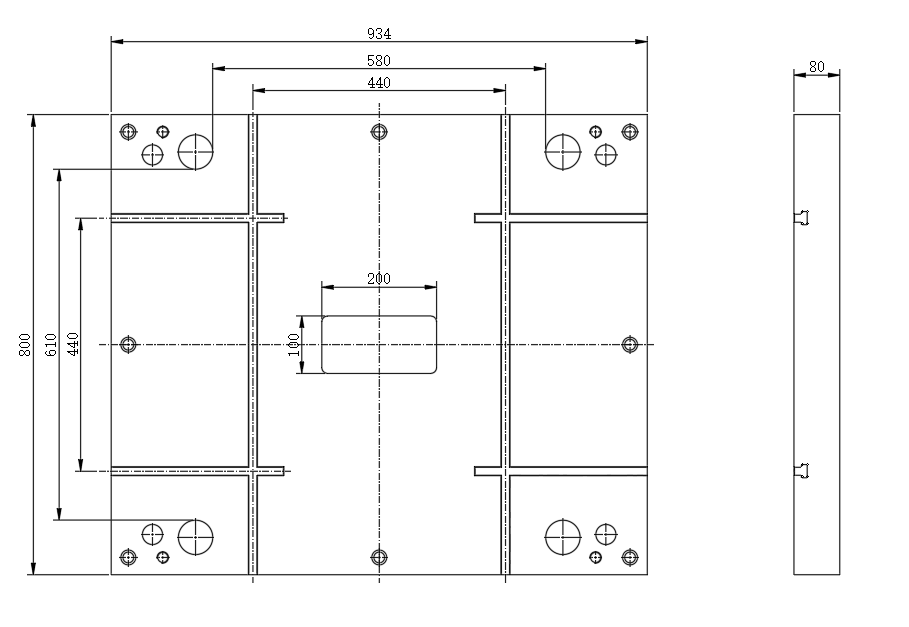

Lower workshop
