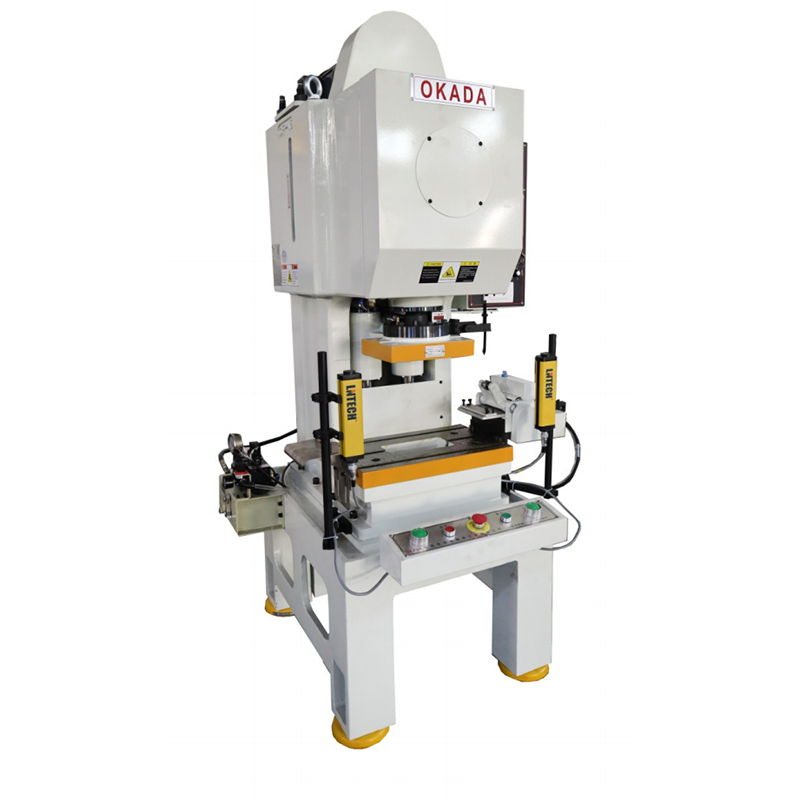

GF-15G

Product features

1. Advanced imported manufacturing technology

2. Humanized appearance design

3. Simple operation man machine interface digital system

4. Perfect combination of efficient production capacity and automatic production line

Configuration

Standard accessory configuration
Human-Machine Interface	1group
Dry pneumatic clutch brake	1group
Programmable logic controller(PLC)	1group
Electronic cam constriction	1group
Inverter control	1group
Manual mold height adjustment	1group
Electronic travel counter	1group
Crankshaft angle indicator	1group
Mechanical cross clamping release device	1group

Standard accessory configuration
Circulating lubrication oil supply system	1group
Air source receptacle	1group
Maintenance tools and toolboxes	1group
Operating instructions and precision Inspection grade sheet	1group
Photoelectric protection configuration	1group
Oil pressure locking system	1group
Misdelivery,no material at the end,air spraying device (simple type)	1group
Main motor forward and reverse device	1group
Display mode height indicator	1group

Specification parameters

Project Model	GF-15G
Nominal force	15T
Trip	20	30	40	50	60	70
Number of trips	200 ~ 350	150 ~ 300	150 ~ 270	150 ~ 240	150 ~ 210	150 ~ 200
Maximum mold height mm	200 ~ 230	195 ~ 225	190 ~ 220	185 ~ 215	180 ~ 210	175 ~ 205
Size of upper table mm	260x205

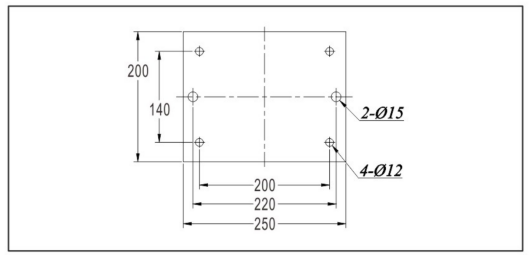

Installation hole distance of upper table mould	220

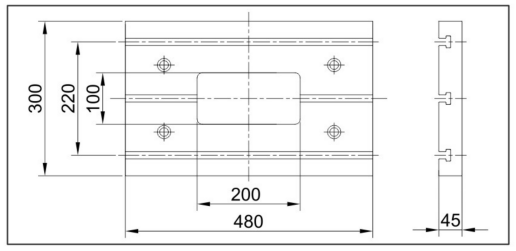

Dimension of lower table mm	480x300x45 (L x W x D)
Blanking hole size mm	200x100
Main motor power	2.2
Slide adjustment	30mm
Mold installation mode	Mould Lifting Method
Working air pressure kg / cm²	5
Operation method	Two-hand Operation
Press color	Standard Off-white

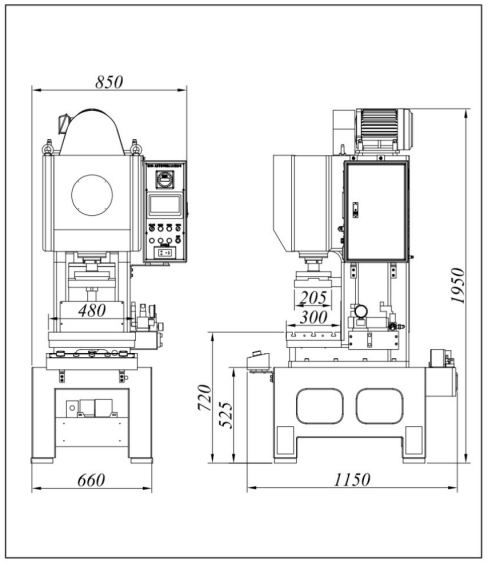

Fuselage mm (L x W x H)	1150x850x1950
Press weight	1500kg
