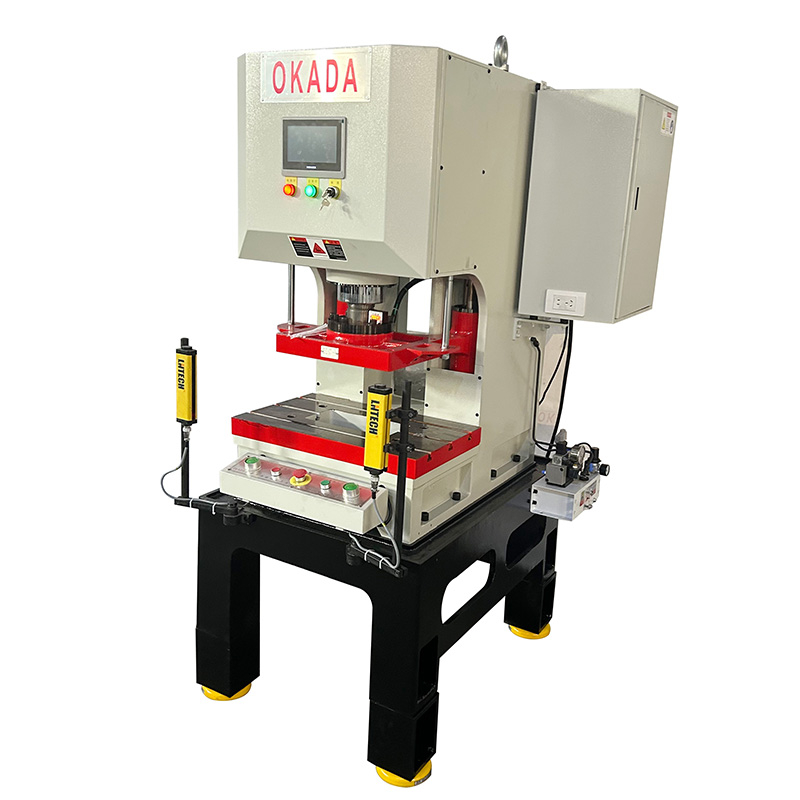

Product features
1.Servo control system,stable product charact edstics,high efficiency,pressure-holding and free travel setting.
2.Memorable slider running route,touch screen,easy to operate,concise and intuitive.
3.Low noise,adjustable speed and balanced stamping force atanyangle.
4.All-electric drive mode,motor working when running,motor stopping when stopping,lower energy consumption,modular structure,flexible design,forced circulation oil supply lubrication,maintenance and maintenance are more convenient.
5.The structure of three-dimensional guide pillar is adopted as a whole.Its operation accuracy and stability are reliable. It protects the mould and prolongs
Standard accessory configuration | |
Human-Machine Interface | 1group |
servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam structure | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
Project Model | SF-25 | |||
Nominal force | 25T | |||
Trip | 40 | 50 | 60 | 70 |
Number of trips | 60 ~ 300 | 60 ~ 300 | 60 ~ 200 | 60 ~ 100 |
Maximum mold height mm | 185 ~ 215 | 180 ~ 210 | 175 ~ 205 | 170 ~ 200 |
Size of upper table mm | 400x200 | |||
Installation hole distance of upper table mould | 300 | |||
Dimension of lower table mm | 650x400x55 ( L x W x D ) | |||
Blanking hole size mm | 100x300 | |||
Main motor power | 7.5 | |||
Slide adjustment | 30mm | |||
Mold installation mode | Mould Hanging Method | |||
Working air pressure kg / cm² | 5 | |||
Operation method | Two-hand Operation | |||
Press color | Standard Off-white | |||
Fuselage mm (L x W x H) | 1250x790x1710 | |||
Specification parameters
Upper workbench
Lower workbench
Dimensions
