Product features
1. The machine adopts high strength cast iron to eliminate internal stress,ensure high precision and strong bearing capacity.
2. Pneumatic clutch brake system and high-end solenoid valve ensure safety and stability.
3. The forced circulating lubricating oil device ensures the accuracy and stability of the high-speed operation of the machine,improves the service life of the machine,and is designed with advanced humanization.Electronic monitoring system can improve efficiency and quality.
Standard accessory configuration | |
Human-Machine Interface | 1group |
Dry pneumatic clutch brake | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam constriction | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Electronic travel counter | 1group |
Crankshaft angle indicator | 1group |
Mechanical cross clamping release device | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Misdelivery,no material at the end,air spraying device (simple type) | 1group |
Main motor forward and reverse device | 1group |
Display mode height indicator | 1group |
Specification parameters
Project Model | GF-20E | ||
Nominal force | 20T | ||
Trip | 20 | 30 | 40 |
Number of trips | 150~400 | 150~350 | 150~300 |
Maximum mold height mm | 190~220 | 185~215 | 180~210 |
Size of upper table mm | 320 x 260 | ||
Installation hole distance of upper table mould | 210-230 | ||
Dimension of lower table mm | 520 x 350 x 45 (L x W x D) | ||
Blanking hole size mm | 300 x 100 | ||
Main motor power | 3.7 | ||
Slide adjustment | 30mm | ||
Mold installation mode | Mould Lifting Method | ||
Working air pressure kg / cm² | 5 | ||
Operation method | Two-Hand Operation | ||
Press color | Standard Off-White | ||
Fuselage mm (L x W x H) | 1178 x 840 x 2086 | ||
Press weight | 1900kg | ||
Specification parameters

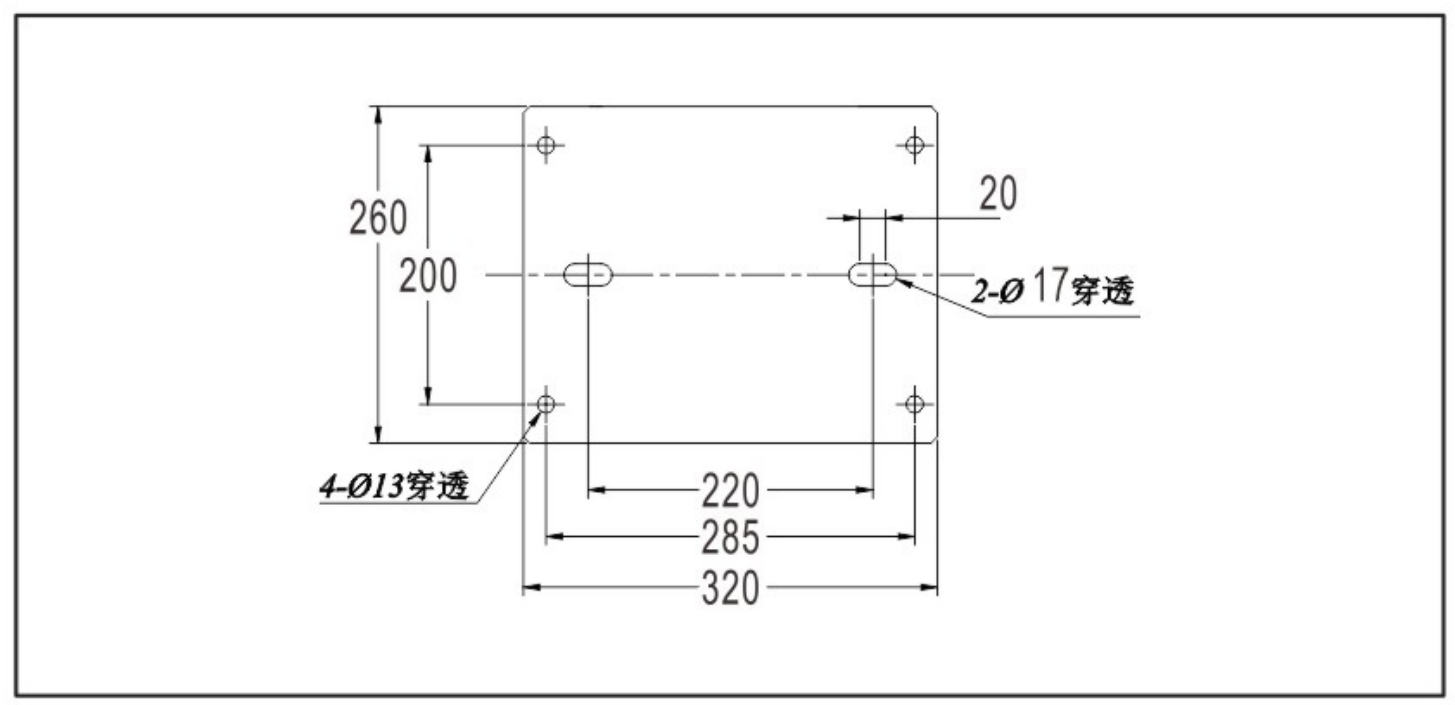

Upper workbench

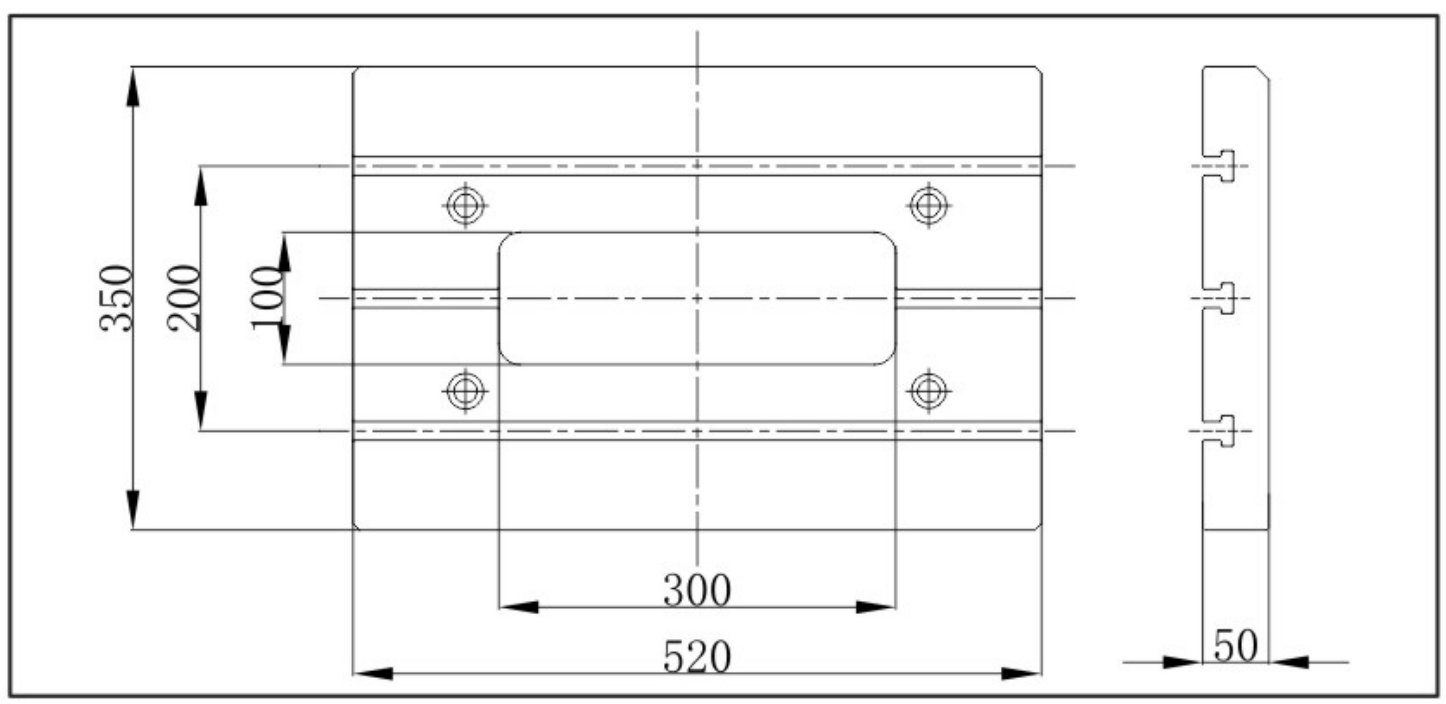

Lower workbench

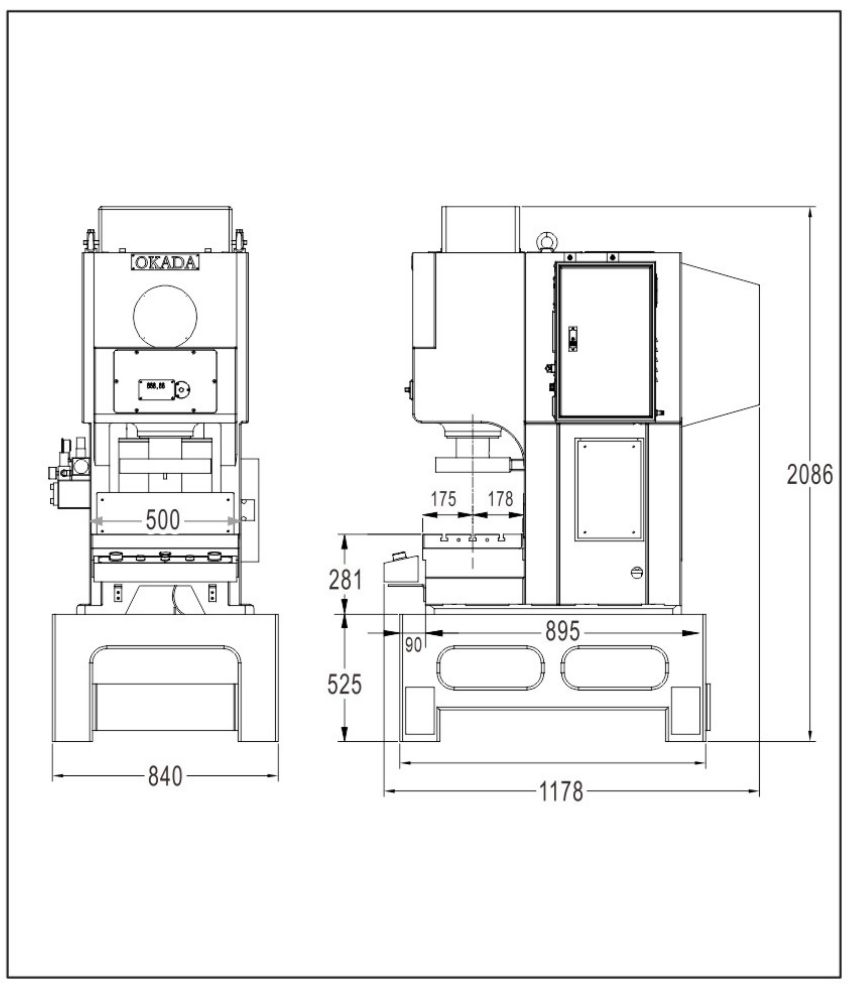

Dimensions
