Product features
1.Advanced imported manufacturing technology
2.Humanized appearance design
3.Simple operation man machine interface digital system
4.Perfect combination of efficient production capacity and automatic production line
Configuration
Standard accessory configuration | |
Human-Machine Interface | 1group |
Dry pneumatic clutch brake | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam constriction | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Electronic travel counter | 1group |
Crankshaft angle indicator | 1group |
Mechanical cross clamping release device | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Air source receptacle | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Misdelivery,no material at the end,air spraying device (simple type) | 1group |
Main motor forward and reverse device | 1group |
Display mode height indicator | 1group |
Specification parameters
Project Model | GF-5G | |||
Nominal force | 5T | |||
Trip | 20 | 30 | 40 | 50 |
Number of trips | 200~350 | 150~300 | 150~250 | 150~200 |
Maximum mold height mm | 160~190 | 155~185 | 150~180 | 145~175 |
Size of upper table mm | 200x160 | |||
Installation hole distance of upper table mould | 180 | |||
Dimension of lower table mm | 340x240x40 (L x W x D) | |||
Blanking hole size mm | 160x75 | |||
Main motor power | 1.1 | |||
Slide adjustment | 30mm | |||
Mold installation mode | Mould Lifting Method | |||
Working air pressure kg /cm² | 5 | |||
Operation method | Two-hand Operation | |||
Press color | Standard Off-white | |||
Fuselage mm (L x W x H) | 960x700x1728 | |||
Press weight | 700kg | |||
Specification parameters
Upper workbench

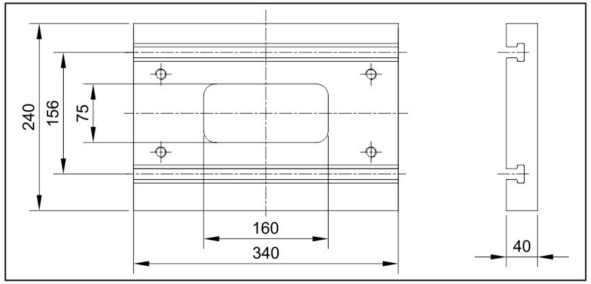

Lower workbench

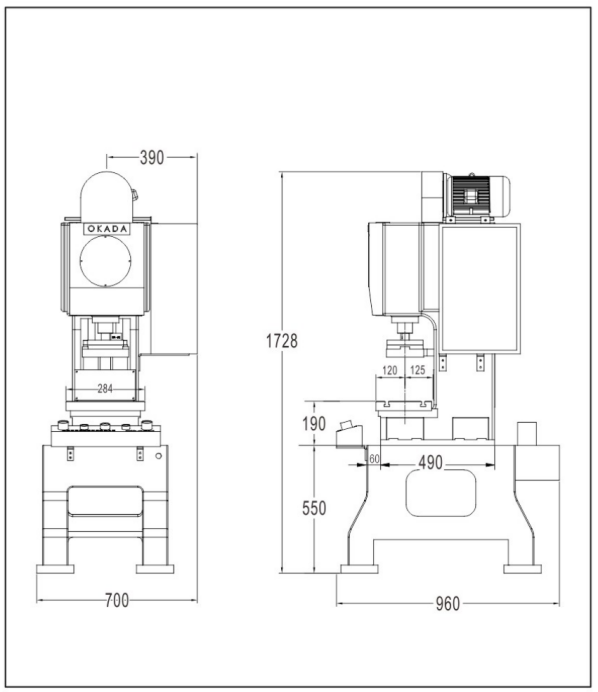

Dimensions
