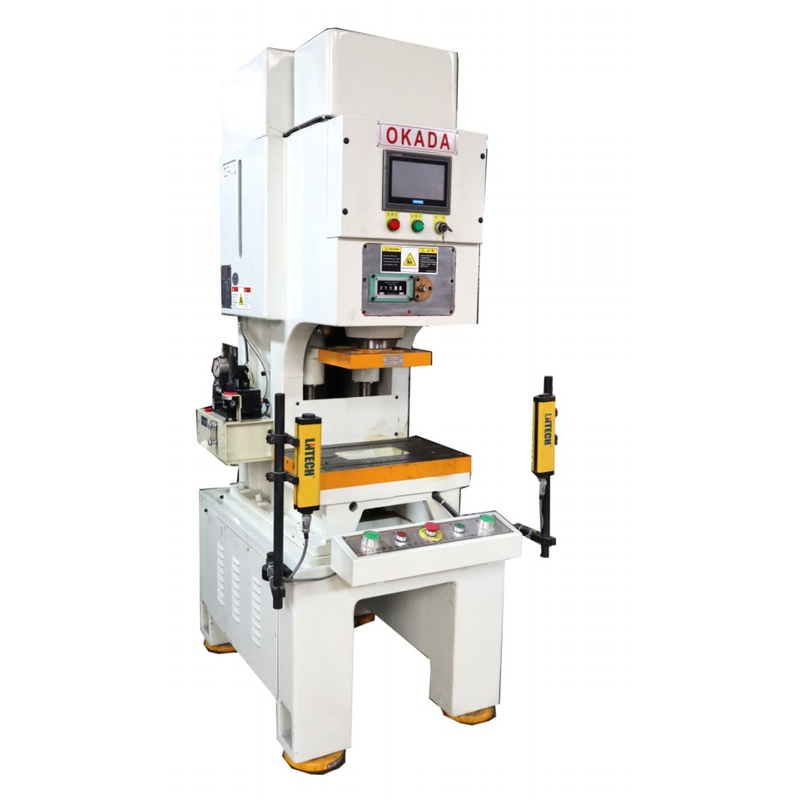

1.The machine adopts high strength cast iron to eliminate internal stress,ensure high precision and strong bearing capacity.
2.Pneumatic clutch brake system and high-end solenoid valve ensure safety and stability.
3.The forced circulating lubricating oil device ensures the accuracy and stability of the high-speed operation of the machine,improves the service life of the machine,and is designed with advanced humanization.Electronic monitoring system can improve efficiency and quality.
Configuration
Standard accessory configuration | |
Human-Machine Interface | 1group |
servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam structure | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
Project Model | SF-10E | ||
Nominal force | 10T | ||
Trip | 20 | 30 | 40 |
Number of trips | 60 ~ 150 | 60 ~ 150 | 60 ~ 120 |
Maximum mold height mm | 190 ~ 220 | 185 ~ 215 | 180 ~ 210 |
Slide adjustment | 30mm | ||
Size of upper table mm | 260 x 205 | ||
Installation hole distance of upper table mould | 200 | ||
Dimension of lower table mm | 480 x 300 x 45 (L x W x D) | ||
Blanking hole size mm | 200 x 100 | ||
Main motor power | 5.5KW servo | ||
Working air pressure kg / cm² | 5 | ||
Operation method | Two-handed operation | ||
Press color | Standard off-white | ||
Fuselage mm (L x W x H) | 969 x 716 x 1827 | ||
Press weight | 1500kg | ||
Specification parameters
Upper workbench
Lower workbench
Dimensions
1.The machine adopts high strength cast iron to eliminate internal stress,ensure high precision and strong bearing capacity.
2.Pneumatic clutch brake system and high-end solenoid valve ensure safety and stability.
3.The forced circulating lubricating oil device ensures the accuracy and stability of the high-speed operation of the machine,improves the service life of the machine,and is designed with advanced humanization.Electronic monitoring system can improve efficiency and quality.
Configuration
Standard accessory configuration | |
Human-Machine Interface | 1group |
servo motor | 1group |
Programmable logic controller(PLC) | 1group |
Electronic cam structure | 1group |
Inverter control | 1group |
Manual mold height adjustment | 1group |
Standard accessory configuration | |
Circulating lubrication oil supply system | 1group |
Maintenance tools and toolboxes | 1group |
Operating instructions and precision Inspection grade sheet | 1group |
Photoelectric protection configuration | 1group |
Oil pressure locking system | 1group |
Specification parameters
Project Model | SF-10E | ||
Nominal force | 10T | ||
Trip | 20 | 30 | 40 |
Number of trips | 60 ~ 150 | 60 ~ 150 | 60 ~ 120 |
Maximum mold height mm | 190 ~ 220 | 185 ~ 215 | 180 ~ 210 |
Slide adjustment | 30mm | ||
Size of upper table mm | 260 x 205 | ||
Installation hole distance of upper table mould | 200 | ||
Dimension of lower table mm | 480 x 300 x 45 (L x W x D) | ||
Blanking hole size mm | 200 x 100 | ||
Main motor power | 5.5KW servo | ||
Working air pressure kg / cm² | 5 | ||
Operation method | Two-handed operation | ||
Press color | Standard off-white | ||
Fuselage mm (L x W x H) | 969 x 716 x 1827 | ||
Press weight | 1500kg | ||
Specification parameters

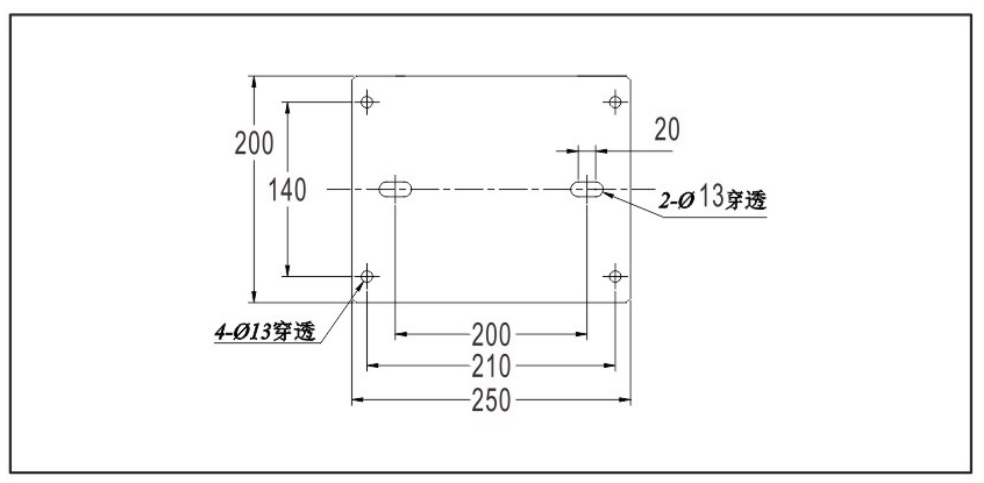

Upper workbench

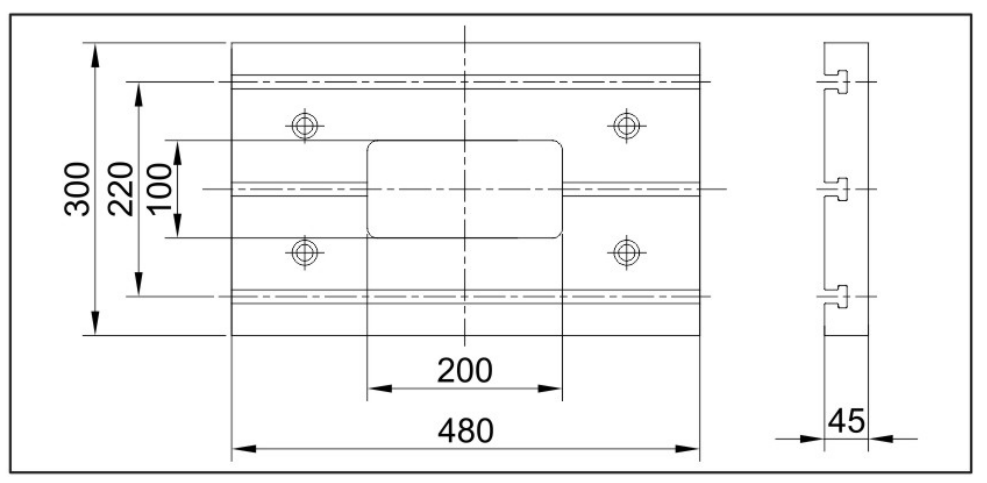

Lower workbench

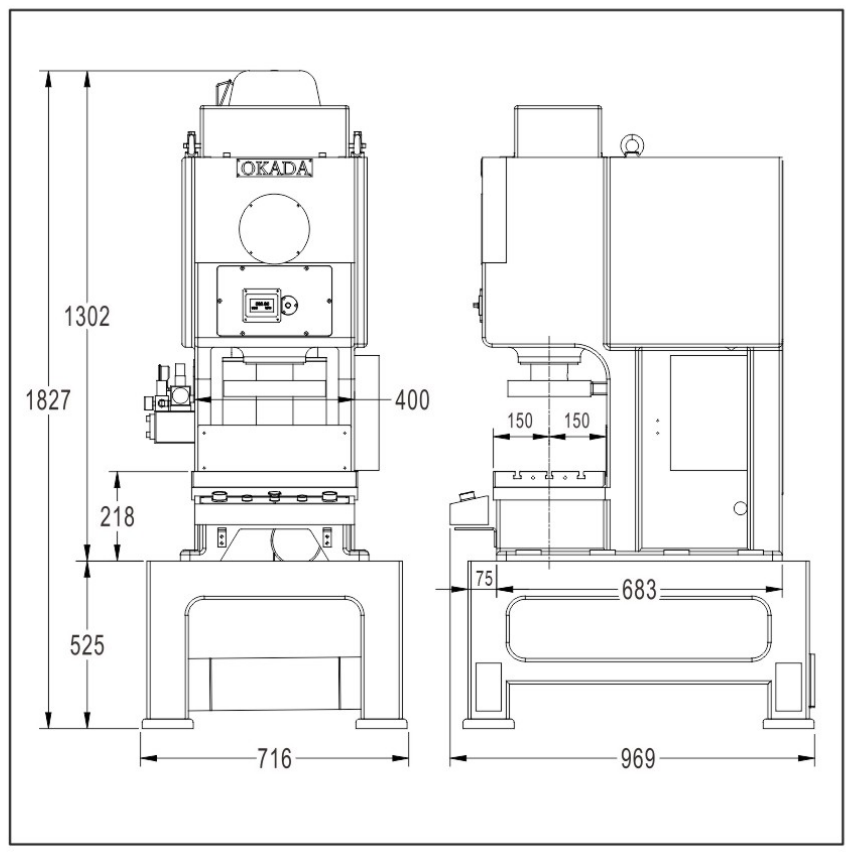

Dimensions
